B2 Series Filled Bag Closing Machine
and Bag Sewing Head

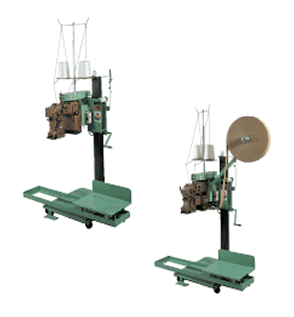

MODEL B2 (with DS-2II - Bag Closing Sewing Head) Filled bag closing machine is highly mobile and accommodates virtually all bag types. The DS-211 bag sewing head adjusts up and down to match different bag lengths. The bag closing system features a carrier table with ergonomically correct position for easy loading and unloading of bags, and an anti-derailing and automatic return device. MODEL B2 (with DS-C Bag Sewing Head) Filled bag closing machine is highly mobile. The carrier table features an ergonomically correct position and anti-derailing and automatic return device. The DS-C bag sewing head can be adjusted to match bag lengths. This bag closing system features a crepe tape unit that can be installed for accurate tape placement, promoting a clean finished product

Maximum Speed 2,700 rpm
Stitch Width 7-10.5 mm (standard setting 10 mm)
Stitch Type Single Needle, Double Thread Chain Stitch
(single thread available by special order)
Cutter Type Air Cylinder Driven Guillotine Cutter
Air Pressure 4 kg/cm2
