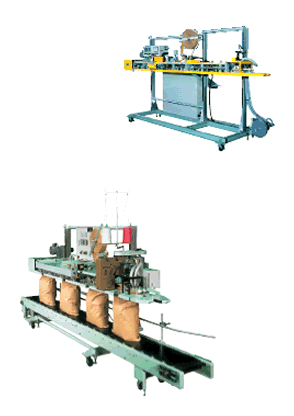

Trimming, stitching, heat sealing (inner PE), and heat seal-tape sealing can be done automatically with the KS bag heat sealer bag closing system. This bag heat seal machine is highly versatile with easy to adjust temperature and heater bar pressure (ease of changing bag thickness). Sift proof, dust proof, and insect proof, bag closure promotes maximum protection. Fully automated heat sealer is easy to install and simple to maintain featuring technologically advanced controls come standard with each system. 5 models are available, specifically designed to meet a wide range of applications. The Model KS-324D is for inner bag & over tape seal after bag top folding without stitching. This "sift proof" closure prevents product contamination
| KS-12 | KS-16 | KS-23 | KS-26 | KS-324D | ||
| Speed(Variable m/min.) |
7~10 | 7~10 | 7~10 | 7~10 | 7~10 | |
| Heater (Capacity) | 500Wx4 | 500Wx12 | 500Wx6 | 500Wx12 | 500Wx14 | |
| Stitching machine head | DS-7C | DS-7C | DS-7C | DS-7C | ------ | |
| Drive Motors | Stitcher | 0.4kW | 0.4kW | 0.4kW | 0.4kW | ------ |
| Sealer | 0.4kW | 0.4kW | 0.4kW | 0.75kW | 0.75kW | |
| Dimensions (mm) | L2,100xW1, 090xH2,052 |
L3,000xW1, 090xH2,052 |
L2,420xW1, 430xH2,052 |
L3,040xW1, 090xH2,052 |
L3,900xW1, 460xH2,052 |
|
| Net weight (kg) | 460 | 610 | 520 | 670 | 850 | |
