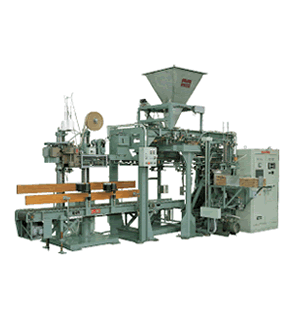

The 3CM-3G automated bag packaging system is specifically designed for powdery products. Unlike net weighing, product is being weighed as it flows into the bag via load cells attached to the bag support mechanism. This automatic bagging machine provides a compact, low profile design with limited required head room.
Four types of feeder applications are available for this type of automatic bagger equipment:
Vertical screw / auger
Horizontal large and small screw
Gravity cut-off gate
Vibratory
| Capacity (bags per hour) | 300 (depending on products, bag size and bag materials) |
| Bag Type | Kraft paper bag, paper cloth bag or PP/PE woven-cloth bag (inner laminated) |
| Filled Weight | 20-30 kg |
| Power Required | Approx.4.3 kW (not included for sewing machine or heat sealer) |
| Air Consumption | 400 Nl/minute (0.5 Mpa) |
| Machine Dimension (m) | Approx. L 5.1 x W 2.5 x H 3.5 |
| Machine Weight | 2,500 kg |
