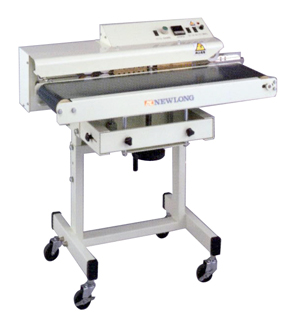

This automatic heat sealer is suitable bag sealing machinery for small bags and sacks made of polyethylene or vinyl coated papers. This bag heat sealing machine features a speed controller, digital temperature controllers and gusset roller as standard. The conveyor moves 60 mm horizontally toward operator. The heat seal is fused by applying pressure through a series of compression rollers and immediately cooled by a "cool air" blower system.
| BD+7 | |
| Seal Width | 8 mm |
| Speed (m/min.) | 0~12 (50 Hz) |
| Conveyor Length | 855mm |
| Conveyor Width | 200mm |
| Conveyor Adjustment | 50mm (below sealing line) |
| Sealing Height (3 steps) | 740mm, 780mm, 820mm (from floor level) |
| Conveyor extension | 60mm (horizontally) |
| Incline | 15 degrees from horizontal position |
| Temperature Control | 0 - 300° C |
| Heater | 450 W x 2 pcs. |
| Drive Motor | 40 Watts |
| Electrical Consumption | 1kW, 1 Phase, 50/50 Hz |
| Net Weight | Approximately 60 Kg. |
| Machine Dimensions | 885mm x 511mm x 995mm |
