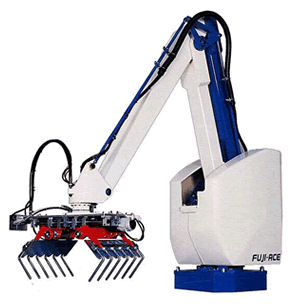

TheThe Fuji Model EC-101 Robotic Bag Palletizer represents the best in medium capacity applications (up to 12 cycles per minute). Fuji maintains an earth friendly robot utilizing less energy than most hair dryers while palletizing faster and longer than humans. This robotic palletizing machine delivers repeatability within +/- 1mm and has a payload capacity over 260 lbs. This system palletizes products ranging from bags, cases, pails, and other miscellaneous products. This robotic palletizing machine, as well as the other bag palletizing equipment, offer many advantages that no other manufacturer can provide. Please note a few of those advantages and contact us directly to find out more. Click here to see the EC-101 Robotic Bag Palletizer Video.
| Mechanism | Articulated Robot | |
| Action Mode | Cylindrica | |
| Weight Capacity (Including hand) | 120 kg (264 lbs) | |
| Palletizing Capacity (cycles / hour) | 1000 cycles / hr | |
| Degree of Freedom | 4 Axes | |
| Operational Space | Z axis (vert.) | 2300 mm (90 1/2") |
| R axis (long.) | 1500 mm (59") | |
| T axis (body) | 330 degrees rotation | |
| A axis (wrist) | 330 degrees rotation | |
| Hand Types | Clamp, Fork, Vacuum, Custom Design | |
| Memory | Teaching Playback / Teaching Support / Teachingless (Option) | |
| Power (200/220V 3ph 50/60hz) | 2.0 KVA | |
| Main Body Weight (without hand) | 800 Kg (1764 lbs) | |
